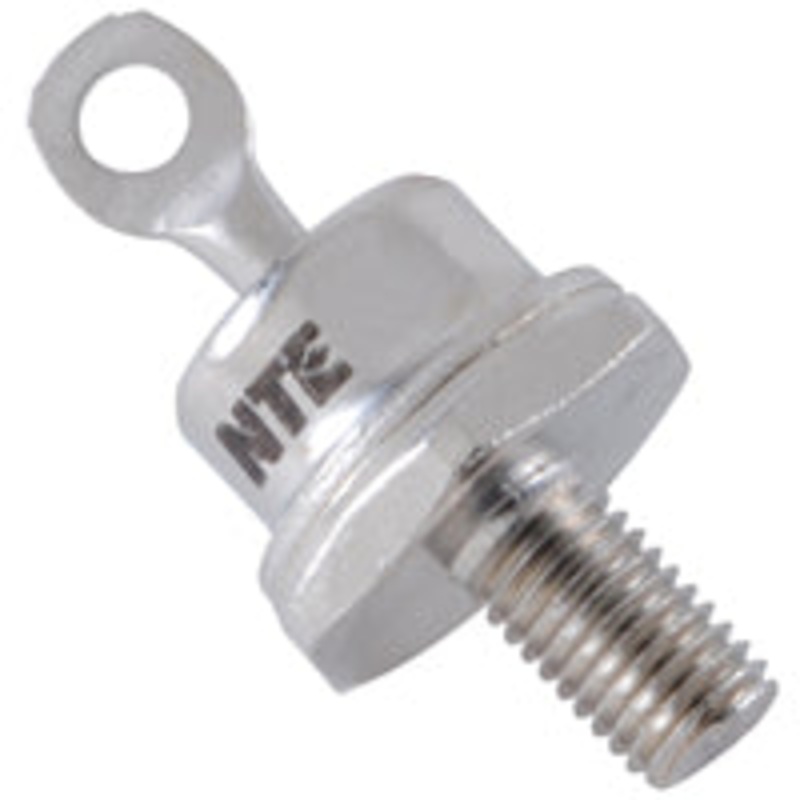

High Performance 1000V 40A Rectifier Diode (DO5 Package)

Reliable 1000V 40A Rectifier for Power Supplies and Projects

This 1000V 40A rectifier is the ideal solution for everyday electronics enthusiasts and DIYers looking for reliable high voltage, high current rectification. Designed in the robust DO5 package, this rectifier diode is well-suited for use in power supplies, solar inverters, battery chargers, industrial controls, and many other home or garage projects.

Key Features of the NTE6002 Rectifier

• Peak Reverse Voltage (PRV): 1000 Volts
• Average Forward Current: 40 Amps
• Package Type: DO5 stud-mount case for excellent heat dissipation
• Single Rectifier Diode per package

Benefits for Everyday Use

With its high current capacity and rugged build, this DO5 rectifier is easy to install and dependable in demanding circuits. It performs reliably for converting AC to DC in a wide range of electronics, protecting your components and delivering stable performance. Whether youre repairing appliances, building a custom power supply, or working on solar power systems, this rectifier provides the peace of mind you want from a key component.

Technical Specifications

• Part Number: NTE6002
• Maximum Repetitive Peak Reverse Voltage: 1000V
• Maximum Average Forward Rectified Current: 40A
• Case Style: DO5
• Mounting: Stud type for secure, durable placement

Perfect for DIY and Replacement Applications

This high voltage 1000V 40A rectifier is commonly used as a replacement for a wide range of older and modern diodes in power, industrial, and hobby applications. Its compatibility and ease of use make it a favorite for anyone working on electronics projects or needing a quick, trustworthy high current rectifier.

This part is the equivalent replacement for the following:

10M100, 1N2287, 1N3767, 1N3768, 1N3768T, 1N3768TM, 1N4529, 1S1844, 1S940, 21R10S, 25C100, 25C90, 25NC12, 2WMT10, 302V, 302Z, 303V, 303Z, 30R25, 35C100, 35C90, 371V, 371Z, 3C10, 402V, 402Z, 403V, 403Z, 40HF100, 40HF90, 40R2S, 417V, 417Z, 418V, 418Z, 419V, 43HF100 (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), 45S100, 4C10, 561-5037-680, 6M100, B1248-40, BYX13-1000, BYX52-900, BYX56-1000, CXL6002, ECG6002, ER28(ELCOM), F3P3, F4P3, GE-5108, MP100, NTE6002, P1104, P1106, PH40-1000, PR9014, PR9015, PR9025, PR9026, Q20L (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), R4100915, R4100918, R4100920, R4100922, R4100925, R4100935, R4100940, R4101015, R4101018, R4101020, R4101022, R4101025, R4101035, R4101040, RN1120, RP1120, RP1120M, RP1140, RP1140M, RP1140T, RP1140TM, S20L (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), S25A10, S304100, S31100, S3190, S32100, S3290, S40A10, SDH40N09P, SDH40N10P, SK7202, SK7202/6002, SR30A-20S, ST3100P, ST4100P
