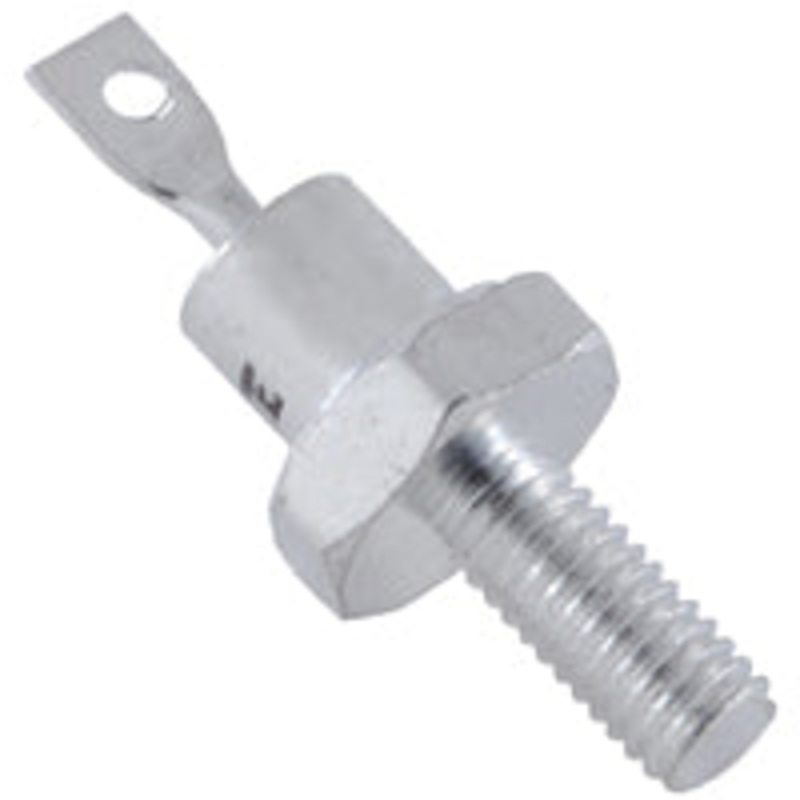

High-Voltage 1000V 3A Rectifier Diode DO-4 Stud Mount

Reliable 1000 Volt 3A Rectifier for Power Conversion

Looking for a dependable way to convert AC to DC in your electronics project? This 1000V 3A rectifier diode in a DO-4 stud mount package delivers high performance for everyday DIYers, hobbyists, and repair enthusiasts. Designed for easy installation and trusted results, its perfect for power supplies, battery chargers, and general rectification tasks at home or in the workshop.

Key Features and Benefits

• High Voltage Rating: Handles up to 1000 volts, offering safety margin in demanding circuits.
• 3 Amp Current Capacity: Delivers steady power for a wide range of electronic applications.
• Durable Stud Mount: The DO-4 package makes installation easy and ensures excellent heat dissipation.
• Versatile Use: Great for power supply rectification, motor control, battery charging, and appliance repairs.
• Direct Replacement: Equivalent to many popular rectifier part numbers (including NTE5848) for convenient upgrades and repairs.

Technical Specifications

• Maximum Peak Reverse Voltage (PRV): 1000V
• Average Rectified Forward Current (Io): 3A
• Maximum Surge Current (Ifsm): 200A
• Forward Voltage Drop (Vf): 1.2V at 3A
• Operating Temperature Range: -65C to +175C
• Package Type: DO-4 stud mount
• Polarity: Cathode case
• Sold Individually

Upgrade Your Project with a Quality Rectifier Diode

This 1000 volt 3 amp rectifier is a reliable solution for anyone needing simple, robust power conversion. Its rugged DO-4 stud mount body means faster, more secure installation and solid performanceeven with higher voltage or current. Trusted by hobbyists and professionals alike, its an ideal replacement diode for vintage gear, automotive repairs, and modern electronics projects.

Part Number: NTE5848 (for reference)

This part is the equivalent replacement for the following:

1N1443B, 1N1444, 1N1444A, 1N1444B, 1N2224, 1N2224A, 1N2225, 1N2225A, 1N2372, 1N2533, 1N2534, 1N2544, 1N2545, 1N2555, 1N2556, 1N3109, 1N563, 1S1357, 1S1630, 1S419, 305V, 305Z, 3C100, 3C90, 3F100, 3F100D, 3NC12, BY2001, BY2002, BY2101, BY2102, BY2201, BY2202, BY3001, BY3001(BRADLEY) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), BY3002, BY3002(BRADLEY) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), BY3101, BY3101(BRADLEY) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), BY3102, BY3102(BRADLEY) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), BY3201, BY3201(BRADLEY) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), BY3202, BY3202(BRADLEY) (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), BYX38/900, CXL5848, ECG5848, GE-5012, NTE5848, PR9002, PR9003, S1000, SK7048, SK7048/5848, SR2B-20, SR2C-20
